Manufacture Services
High volume PCB manufacture and assembly services.
Our Services
CNC & Injection Moulding
For large scale production, the enclosures will need to be produced as the same rate as the boards rolling off the production line. 3D printing will be the bottleneck for this task. Elliptic has its own internal CNC capability and partners with numerous injection moulding companies to allow for large scale manufacture of enclosures for microelectronics.

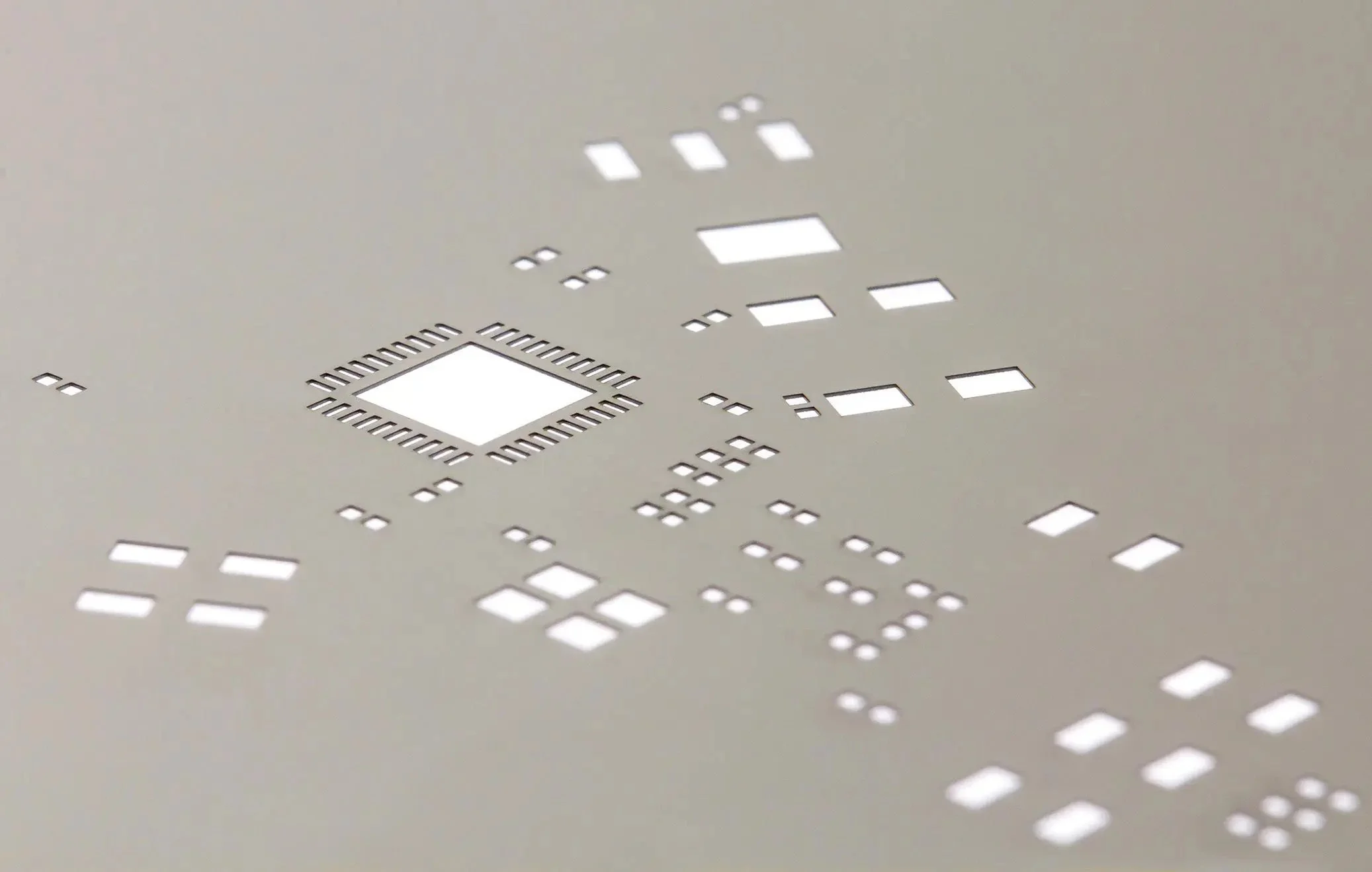

Stencils
At Elliptic, we can produce stencils for both protoype use within your own lab and stencils that are designed to integrate into our SMT assembly pipeline for production runs. We have a dedicated stencil team and can produce stencils to cater for custom requirements that are specific to your PCBs.

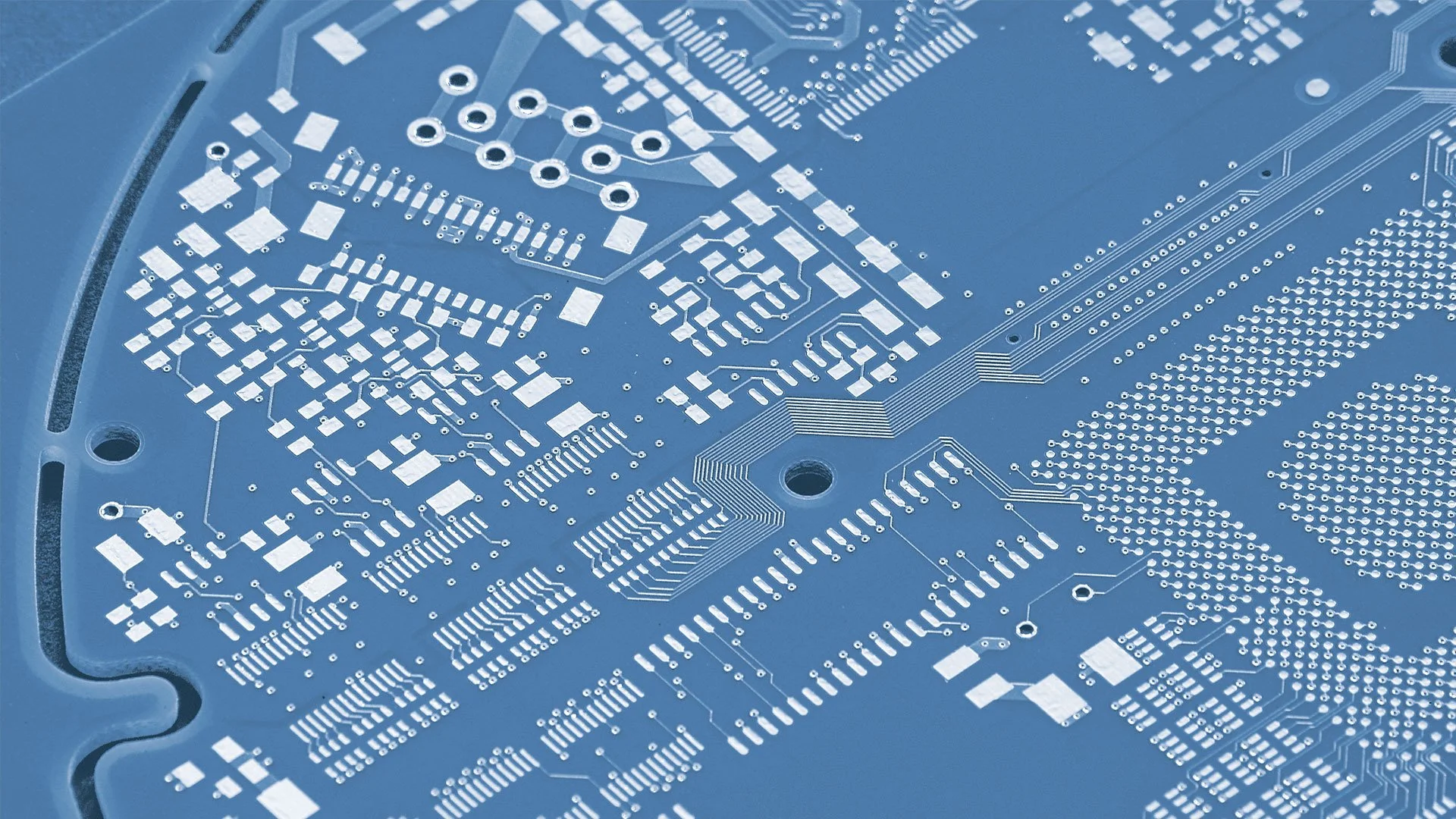

PCB Manufacturing
Elliptic Systems manufacture PCBs entirely within the UK with the highest levels of quality control. We cater for protoype and large-scale production orders. We offer a rapid turnaround service which offers delivery within 2 days from the receipt of Gerber files. Elliptic can produce Multilayer, Flex, Flex-Rigid, PTH and Single-Sided PCBs. Prototypes and fast turnaround are our speciality.

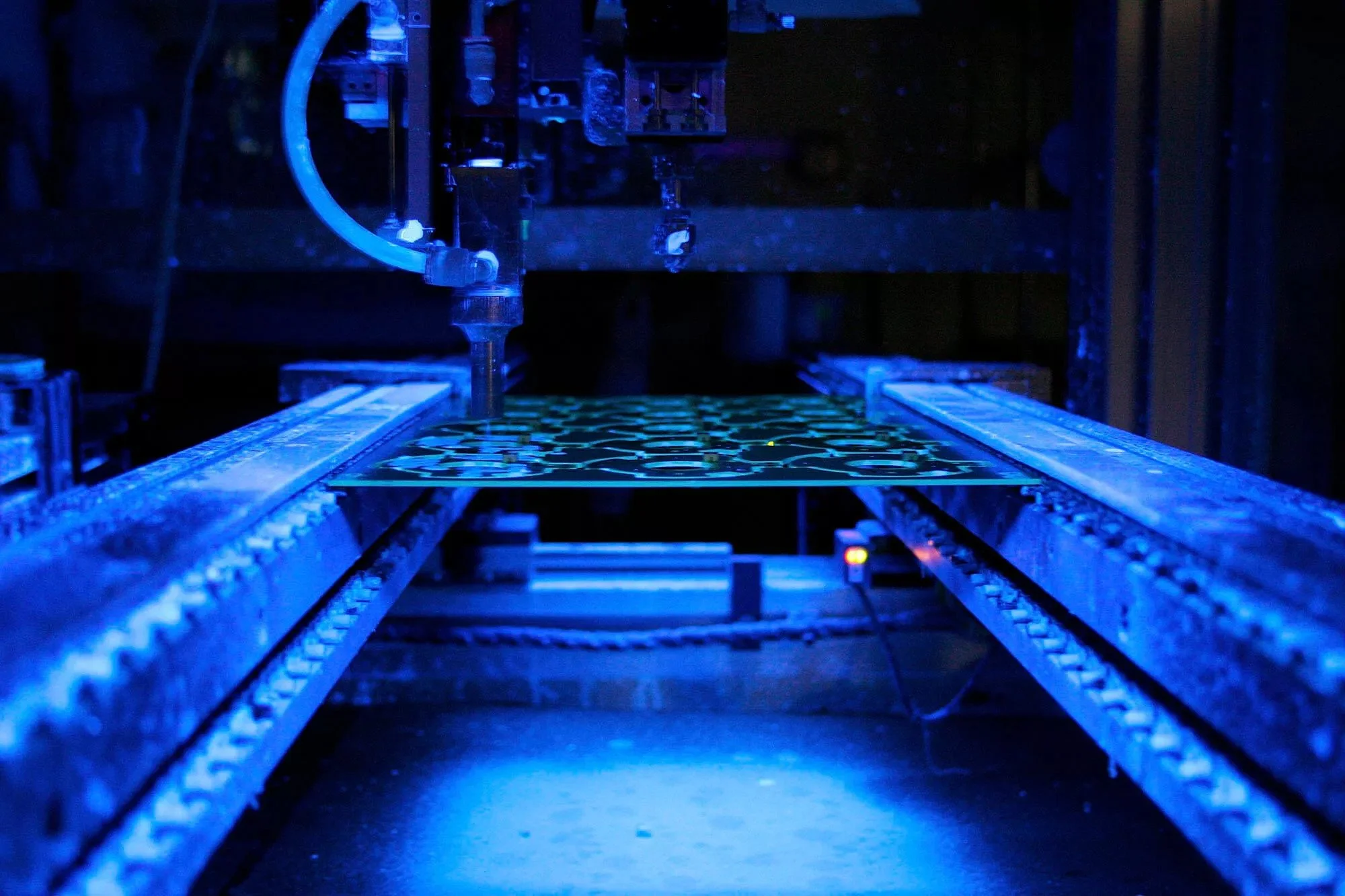

SMT Assembly
Our HQ has one of the most advanced SMT assembly pipelines in the UK. We have automatic solder paste printers, optical inspection machines, pick and place machines and reflow ovens all to cater for both low volume and mass production. Our custom-designed PnP machines can support up to 100 feeders making them ideal for heterogeneous boards with a wide variety of components.
